Specifications
EZ Break 7.0 specifications
How the machine is built, what it is for, and its technical data.
01 — Design and function
Design and function
The EZ Break 7.0 is mounted on an excavator and driven by the auxiliary hydraulic system. Hydraulic cylinders clamp the drill rod; torque is then applied to make up or break out the threaded connection. Because it integrates into a drilling setup rather than working alone, it is commissioned as part of the complete rig.
02 — Main parts
Main parts
- Clamping cylinders — hold the drill rod
- Break-out mechanism — applies make/break torque
- Hydraulic connections — feed from the excavator auxiliary circuit
- Mounting interface — to the excavator
- Type plate — model, serial number and QR code to this machine’s documents
Full part identification is in the IOM manual. The list here orients you; it does not replace the manual.
03 — Applications
Applications
Horizontal directional drilling: making up and breaking out drill-rod connections in the field, as part of an HDD contractor’s setup.
Technical data
Technical data
Full specifications available on request.
The verified specification data for the EZ Break 7.0 is being finalised with the manufacturer. Contact us and we will send the current figures.
Request specificationsThe machine, up close

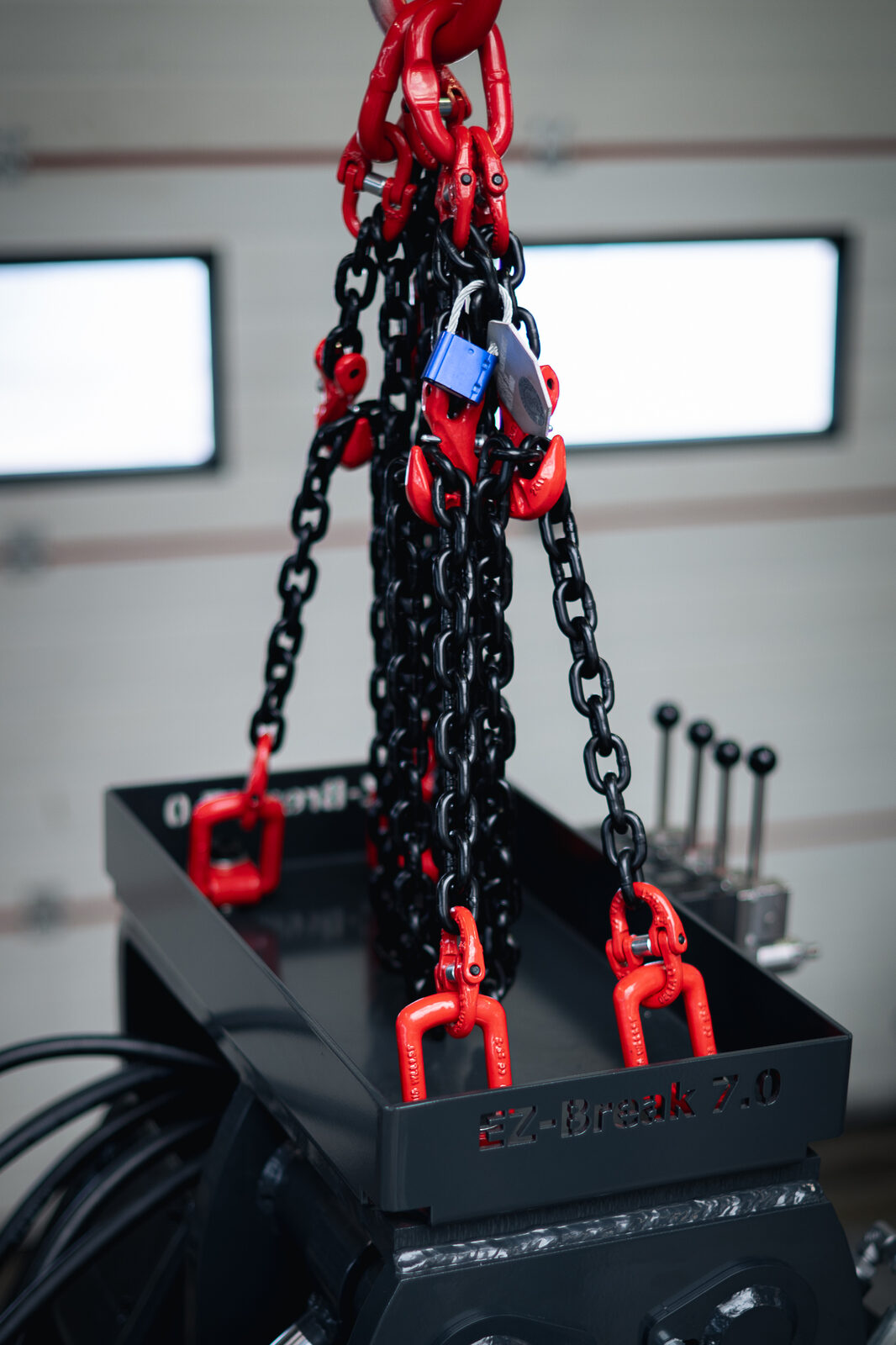

The EZ Break 7.0 in the workshop — build, hydraulics and handling.
